The FRP Sandwich PU Panel now is the best Refrigerator Truck Body Material ( Price of JMC HuBei cooling van truck ) and this material is become more and more popular in the Refrigerator Truck ( Price of JMC HuBei cooling van truck ) Body market. All close panel, adhesive structure with the type of building block, Freon free polyurethane vesicant material is our innovation, which are very different from traditional open sandwich panel with connecting by metals, injected polyurethane at site with Freon.
The Thickness of Refrigerator Truck is according to customer's requirements, range from 30mm to 150mm.With the dimensions, the truck body can be the best Refrigeration Effect.
Insulated truck body Main Characters:
Light in weight: 40% lighter than metal body.
Better insulation: K value less than 0.3w/m2k.
High in strength and long life: 5 times longer than metal body.
Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
Easy to assembly and repair at site.
| Main parameters | Product model | CLW5042XLCJ3 |
| Gross weight (kg) | 4500 | |
| Rated load (kg) | 1595 | |
| Curb weight (kg) | 2770 | |
| Cab seats | 3 | |
| Approach/departure angle | 27/14 | |
| Number of axles | 2 | |
| Axle load (kg) | 1860/2635 | |
| Overall dimension(mm) | 5995×1950×2900 | |
| Front/rear suspension (mm) | 1065/1570 | |
| Wheel base(mm) | 3360 | |
| Max speed (km/h) | 100 | |
| Steering | Left hand drive and right hand drive | |
| Chassis parameters | Chassis model | JX1041TG24 |
| Brand | JMC | |
| Fuel | diesel | |
| Number of wheels (mm) | 6 | |
| Tire specification | 7.00R16LT | |
| Rear track base (mm) | 1425 | |
| Engine type | JX493ZLQ4 | |
| Engine displacement (ml) | 2771 | |
| Engine power (kw) | 80 | |
| Emission standard | Euro III | |
| Refrigerator box | Box dimension(mm) | 4150×1750×1750 |
| Thickness(mm) | 80 | |
| Unit | Carrier or according to you | |
| Temperature | can reach -18°C | |
| Side door | According to you |

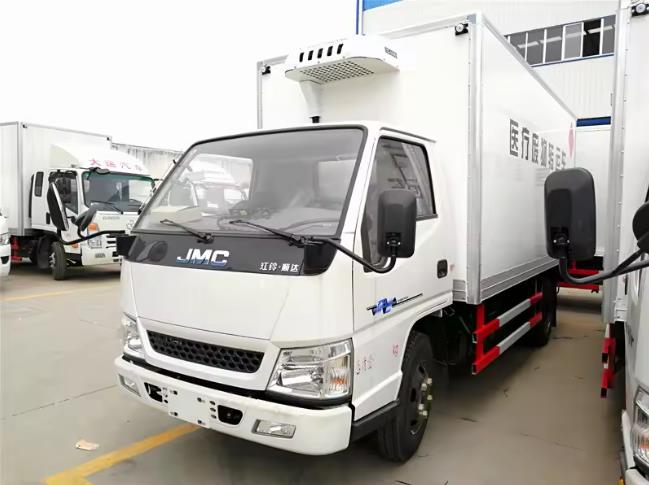

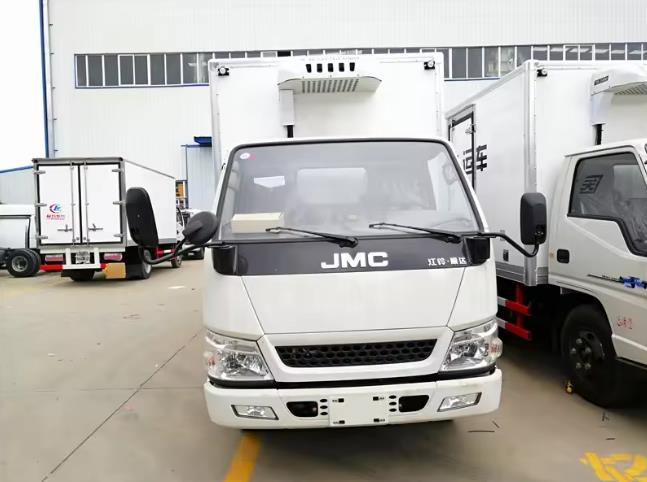

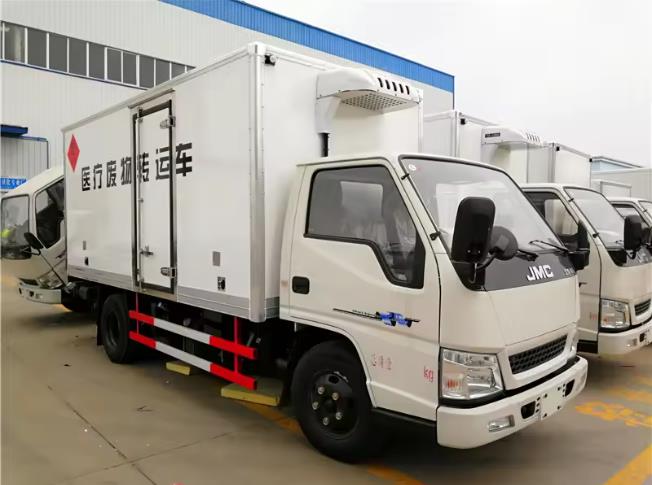

Photo Show
