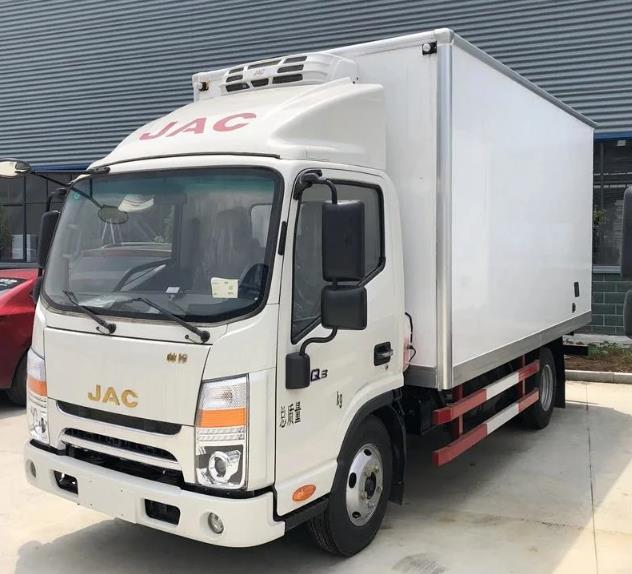

The brief introduction Refrigerated cooling van truck
1. Refrigerator box truck also called refrigerator cooling van, refrigerator van truck, freezer truck, refrigeration truck, freezer van,freezer box truck, food truck refrigerator freezer,reefer van,etc
2. It composed of truck chassis,refrigeration unit,cooling van,etc. It used to transport ice cream,milk, leben, frozen food,etc

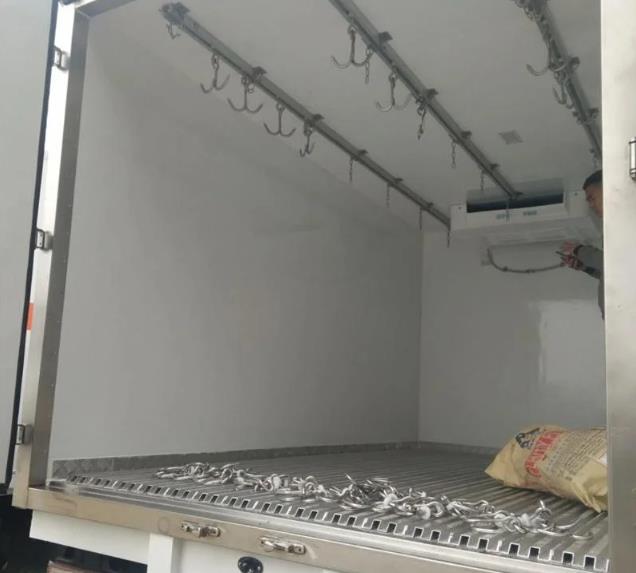

The refrigerator van equipped with hook for meat on the inner roof and air trunking at box bottom of the truck.
3. The freezer truck usually adopted USA brand THERMO KING, CARRIER, and China brand Dongin,Hua Tai,Han Xue,etc.
The temperature of refrigeration units range from 0 degree to -18 degree
You also can install heating refrigerator to make the temperature above zero in bitter winter.
4. The refrigerated van material can be color plate,fiberglass,stainless steel,aluminium alloy,etc.LOGO can be painted or pasted
As a professional reefer box truck manufacturer, the refrigerator truck with light weight, good insulation performance,waterproof,
corrosion resistance,smooth surface,clean easily,etc.
Refrigerator truck Chassis option:DFAC,FAW,SINOTRUCK HOWO,BEIBEN,SHACMAN,JAC,JMC,ISU ZU,etc
Detailed Photos
PRODUCT DETAILS
Truck chassis specification
| Cabin | Short cab.With A/C | |
| Vehicle Dimensions | Overall dimensions (L x W x H) mm | 5995×2285×3100 |
| Wheel base (mm) | 3300 | |
| Wheel track (front/rear) (mm) | 1300/1240 | |
| Truck weight (KGS) | Tare weight | 3250 |
| Recommend payload | 3000-5000 | |
| Front axle load capacity | 2540 | |
| Rear axle load capacity | 3820 | |
| Max. driving speed(km/h) | 85 | |
| Engine | Manufacture | Dongfeng Chaochai engine |
| Model | CY4102-C3F | |
| Type | Straight 4-cylinder in line,supercharged with inter-cooling,diesel engine | |
| Displacement(L) Engine power(hp) | Engine displacement:3.856L Power:95HP | |
| Emission standard | Europe 3 | |
| Gearbox | Manual operation, 5 forward gear, 1 reverse gear | |
| Steering | Hydraulic steering with power assistance | |
| Tire | 7.50-16. 6+1 pcs (including one spare tire) | |
The special parameter of refrigeration freezer cooling van specifications
| Refrigerated cooling van effective volume(CBM) | About 16 cubic meter |
| Cooling van size(L*W*H)mm | 4080*2050*2100 |

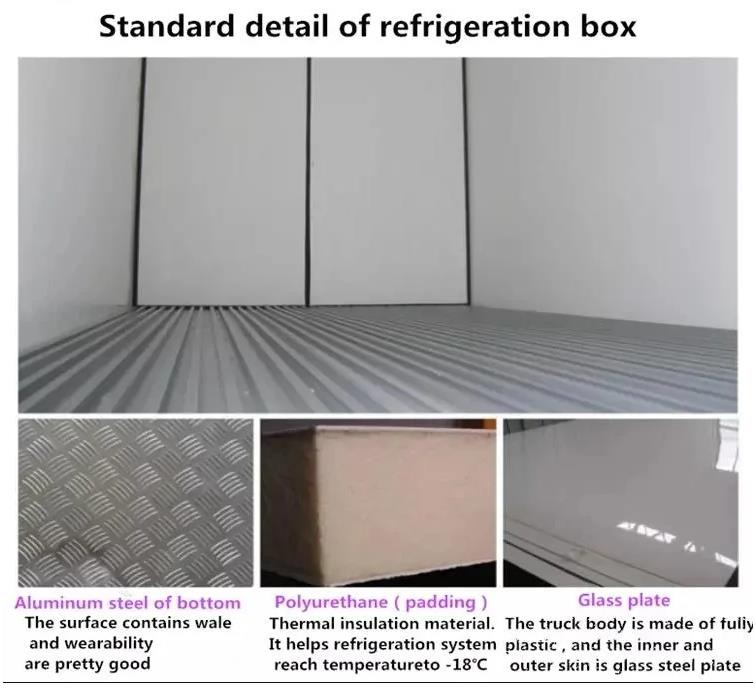

| Cooling van specification | The outer insulation layer material and floor material adopt aluminum plate 1.Adopt FRP sheet in two sides and PU foam in the core. The truck bodies equipped with M type flooring, lighting system etc. 2.Insulation layer: FRP+PU foam+FRP.Foam thickness:60mm FRP sheet in two sides and PU foam in the core |
| Refrigerator unit | Non independent refrigeration unit Min. inside temperature:-18 degree |
