The appearance of the box is a circular arc flow linear shape, and the overall folding of the bottom plate is not welded, eliminating the risk of leakage. simple Clean and beautiful, with strong deformation resistance, good structural reliability, and effectively increasing actual volume, surpassing similar products,
The material is made of high-strength manganese steel plate, which is not easily deformed, wear-resistant, and has strong corrosion resistance.

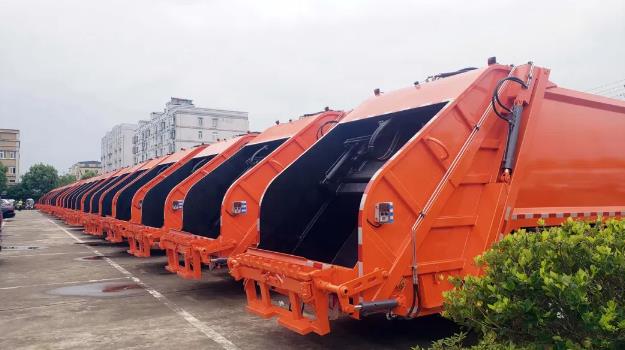

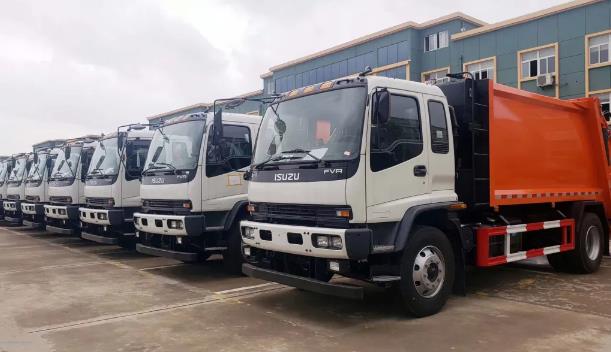

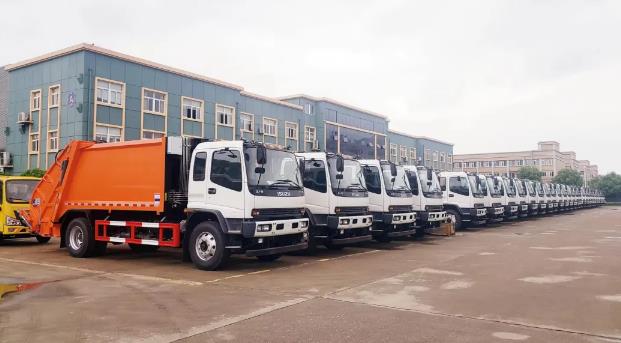

12m3 I Suzu Garbage Compactor Truck Photo Show
Product Parameters
| Vehicle Parameter: Customized Production New I SUZU Dongfeng HOWO Forland JAC JMC brand rear loading garbage compactor truck factory price for sale | |
| Product Name | Compactor Garbage Truck |
| Model | CLW5081ZYSB6 |
| Chassis No. | QL1090 |
| Driving Type | 4*2 |
| Gross Weight | 7300kg |
| Related Loading Mass | 4000kg |
| Curb Weight | 4000kg |
| Dimension | 6400*2150*2650mm |
| Wheelbase | 3360(mm) |
| Front Axle Loading Capacity | 3000kg |
| Rear Axle Loading Capacity | 4500kg |
| Approach angle | 20° |
| Departure angle | 13° |
| Front Suspension | 1130mm |
| Rear Suspension | 2140mm |
| Tire | 7.00R16.6+1 PCS |
| Max Speed | 105 (Km/h) |
| Engine parameters: | |
| Model | 4KH1CN5LS |
| Horse Power | 98hp |
| Displacement | 2900cc |
| Emission Standard | Euro 5 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling) |
| Gear Box | |
| Gear Box | 5 forward and 1 reverse |
| Superstructure Parameter: | |
| Tank Volume | 6CBM |
| Tank Shape | Arc-shape |
| Tank Material thickness | Bottom:4mm Side:4mm |
| Tank Material | T420(Special Steel) |
| Compression Ratio | ≥2.5 |
| The effective volume of the bucket | ≥0.8m³ |
| Loading cycle time | ≤40 s |
| unload garbage time | ≤45s |
| control method | Automatic,Manual |
| Maximum pressure of hydraulic system | 20MPa |
| Control System | Siemens PLC |
| Engine power control | Fully automatic control |
| Tumbler mechanism | 240L Garbage bin(Others Optional) |
