DONGFENG 8m³ Side loader garbage truck is a new generation garbage truck, developed by CLW Group in combination with the characteristics of side loader garbage trucks and compactor garbage trucks. It has function of self-loading, self-unloading, automatic compression, mechanized loading, compaction, transportation and dumping of solid waste. It can be matched with a general-purpose garbage truck barrel and has a large carrying capacity.

Chassis configuration

Garbage truck body volume is 8 cubic meters, wheelbase is 3.8 meters, Chaochai 124 horsepower, steam brake, oil brake optional, drive rotation, 2 tons front axle, 3.5 tons rear Axle, 700 tires with original spare tires, single-row reversible, direction assist, clutch assist, adjustable crystal headlights.

Top loading configuration

The effective loading volume is 8 cubic meters, the box body is made of carbon steel plate, the front side of the box body is equipped with a hanging bucket lifting mechanism, which can automatically lift the trash can to pour garbage, with a self-unloading function, and a rubber sealing strip at the back, anti-sewage dripping, garbage truck with bucket can be matched with 120 liter or 240 liter plastic bucket and iron bucket based on customer requirements.

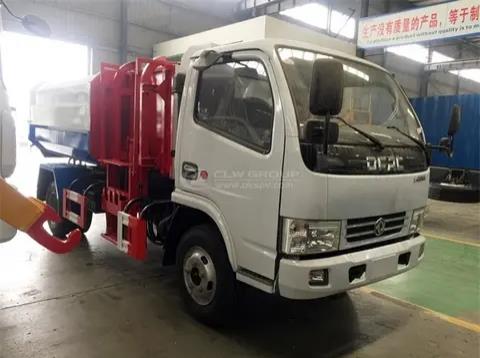

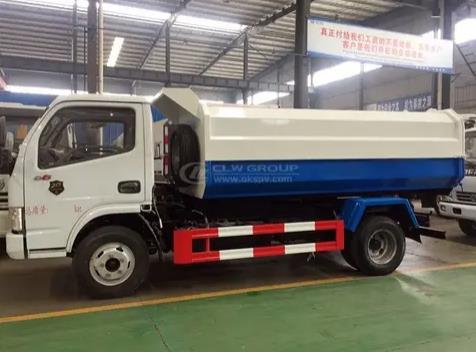

Photo Show

Mechanism Advantage

【Garbage Compartment】

The garbage tank body is made of high-quality carbon steel, with good internal and external corrosion and rust prevention, good sealing, large carrying capacity, safe, energy-saving and environmentally friendly, and optional hydraulic opening rear door.

【Loading Mechanism】

A hoist is installed on the side of the garbage bin, which adopts a chain type and is lifted by the force of an oil cylinder. The garbage can can be raised and lowered. A working cycle time is 50 seconds.

【Lifting Mechanism】

The use of reliable brand hydraulic cylinders, reliable quality, stable operation, realizes the dump function of the trash bin, frees workers' hands and improves work efficiency.

【Control Handle】

The brand hydraulic multi-way valve is used to control the lifting of the box body and the operation of the lifting mechanism, which is simple and convenient. Optional one-key operation in the cab.

Chassis Advantage

【ABS】

The braking time and braking distance are shortened, which effectively prevents the vehicle from slipping and flicking during emergency braking, avoids violent friction between the tire and the ground, and reduces tire wear.

【Hydraulic Steering】

The steering wheel and steering wheel are connected by mechanical components for precise control. The hydraulic pump is driven by the engine, with sufficient steering power and high reliability.

【Engine】

High-torque high-horsepower engine, strong power, 30% slope start without worry, low fuel consumption, environmental protection standards.

【Gearbox】

5-speed gearbox, more gears, adapt to complex road sections, easy shifting, economical and fuel efficient.

【Urea Tank】

Urea tank is used to store urea aqueous solution, selective reduction of SCR, reducing nitrogen compounds to meet the national five standards, more economical and environmentally friendly.

【Exhaust Gas Filter tube】

Leading technology, extending life by more than 28%. The addition of special active materials to the polar plates improves the charging performance by more than 15.6%.

【Battery】

Leading technology, extending life by more than 28%. The addition of special active materials to the polar plates improves the charging performance by more than 15.6%.

【Air Condition Compressor】

Adjust the temperature and humidity in the car. An air-conditioning system that provides drivers with a comfortable environment, warm in winter and cool in summer.

【Air Brake】

Compressed air enters the brake air chamber to lock the wheels, effectively preventing brake failure when the handbrake or mechanical failure of the drive shaft occurs. The brakes are more stable, more accurate and safer, and the uphill start is easy.

Specification
