Rear load garbage truck is also called compactor garbage truck. This type is for capacity of 12 cubic meter trash body. The body is composed of sealed garbage compartment, hydraulic system and operating system. The vehicle is fully sealed. The water in the process of self-compression, self-dumping and compression enters the sewage tank, completely solving the problem of secondary pollution in the process of garbage transportation, and avoiding inconvenience to people.
The key parts are imported parts, which have the advantages of high pressure, good sealing, easy operation and safety. Optional bucket hanging overturning mechanism or garbage hopper overturning mechanism.

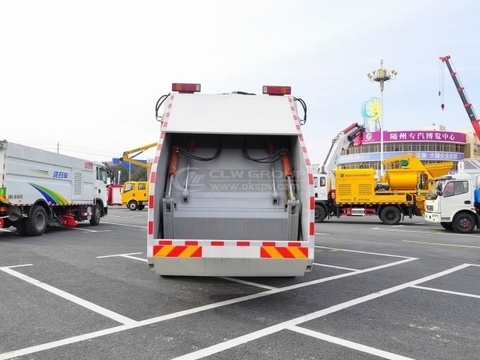

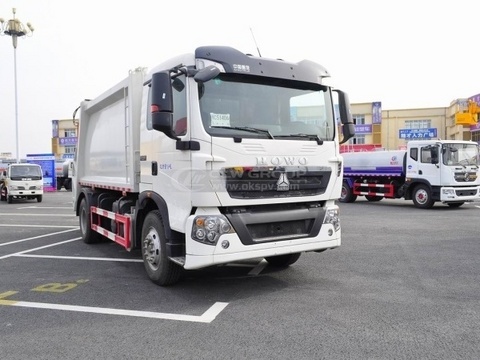

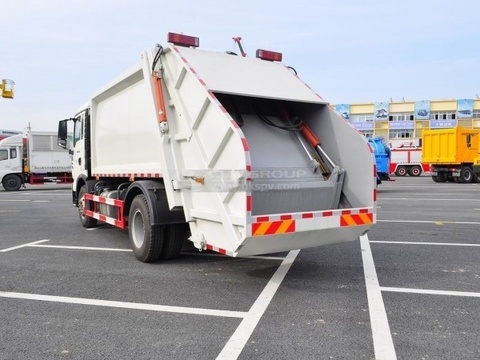

HOWO 4x2 12CBM Garbage Compactor Truck Photo Show
Specification
Basic Configuration Parameters | |||
| Truck Type | Garbage compactor truck | Capacity（m³） | 12 |
| Overall Size(mm) | 7770×2490×3250 | Drive Type | 4x2 |
| Total Weight(kg) | 16000 | Rated Weight（kg） | 5570 |
| Curb Weight(kg) | 10300 | Max Speed(km/h) | 95 |
| Fuel Type | Diesel | Emission Standards | GB17691-2005.GB3847-2005 |
| Wheelbase(mm) | 4200 | Tyre Specification | 10.00R20.10.00-20 |
| Chassis Brand/Model | Sinotruk/ZZ1167K421GE1 | Engine Brand/Model | Sinotruk/MC05.16-50 |
| Power(kW/HP) | 118/160 | Displacement（mL） | 4580 |
Upper Body Configuration Parameters | |||
| Standard | Compactor garbage truck is composed of sealed garbage compartment, hydraulic system, dual control system, diversified overturning mechanism and operating system. Lifting oil cylinders (2) trash bins can be lifted up and down, and the next cycle time is 50S. | ||
| Optional | Compactor garbage truck can be equipped with a rear hanging bucket turning mechanism or a garbage bucket turning mechanism, which is automated, and the garbage collection method is simple and efficient. Garbage trucks can be converted into garbage trucks for special purposes according to user requirements. | ||
