6-8 m3 capacity Compactor garbage truck
(1) ISUZU 4x2 chassis, single row flat cab, left hand drive with AC;Euro IV emission
(2) 2 Axle, hub reduction, heavy duty
(3) ISUZU 4 cylinder 190HP diesel engine,
(4) 6 transmission gear box;Power steering, oil brake, 8.25-16 tire
(5) Certification: ISO9001 ISO14001
Compactor garbage truck Series Key features
---- ISUZU chassis, perfect performance(4*2,6*4 brand with JMC,Sinotruck , Dongfeng, JAC, Foton and etc available)
---- ISUZU diesel engine, 190HP super powerful, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.

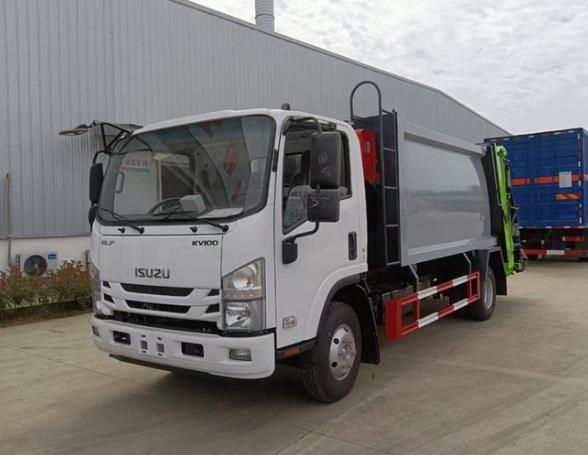

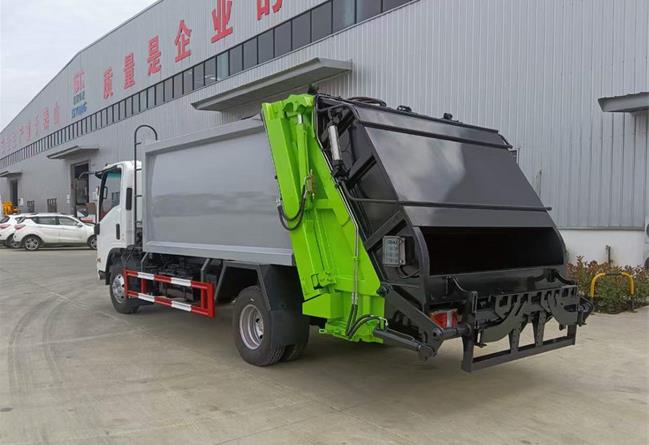

Photo Show
Specification
Main Parameter | Gross Weight(kg) | 10000 | ||
Curb Weight(kg) | 6800, 7030kg | |||
Overall Dimension (L * W * H) (mm) | 7330, 7205*2260*2810, 3125, 2890, 3205 | |||
Chassis Mode | QL10909KAY | |||
Engine Parameter | Mode | 4HK1-TCG40 | ||
Power(hp) | 190 | |||
Displacement(ml) | 5193 | |||
Fuel Type | diesel | |||
Functional Parameter | Max Speed(km/h) | 110 | F/R Tread(mm) | 1680/1650 |
Leaf Spring | 8/10+6 | F/R Overhang(mm) | 1110/2405, 1110/2280 | |
Axle Load(kg) | 3350/6650 | Approach/Departure Angle(°) | 17/12 | |
Tire Size | 8.25-16 | Number of Tires | 6 | |
Wheelbase(mm) | 3815 | Number of Axles | 2 | |
