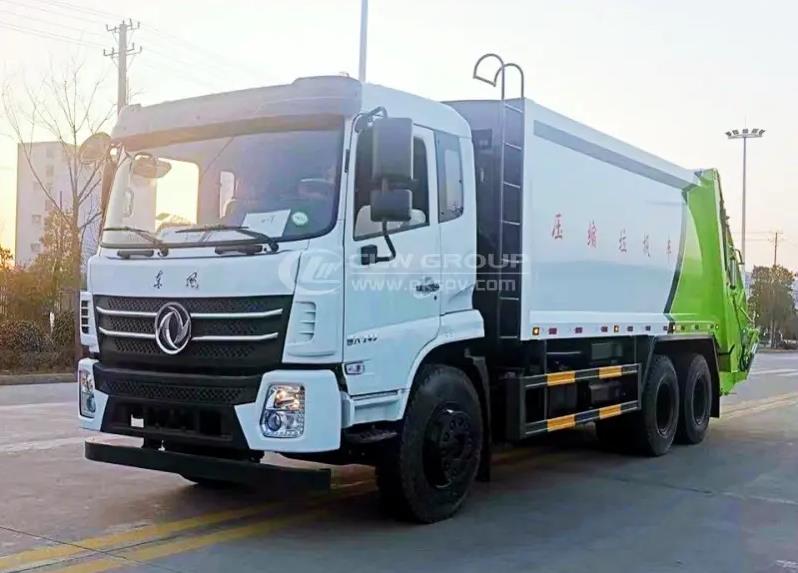

The compactor garbage truck with 20cbm is a special vehicle used for the shipment and compression of munipal trash (not suitable for shipment: construction waste, kitchen waste).The use of electro-hydraulic integration technology is mainly composed of special devices such as garbage compartments, fillers, dozers, hydraulic systems, etc., combining mechanical, electrical, and liquid phases with manual/automatic control systems to realize garbage dumping, crushing or flattening, Powerful loading; squeeze the garbage into the carriage, compact, and also equipped with self-unloading function.
Its main features are simple and efficient garbage collection methods, automatic repeated compression and peristaltic compression functions, high compression ratio, high loading quality, automatic operation, good power and environmental protection, high utilization efficiency of the whole vehicle, and good airtightness.
Mechanism Advantage
【Filling Mechanism】

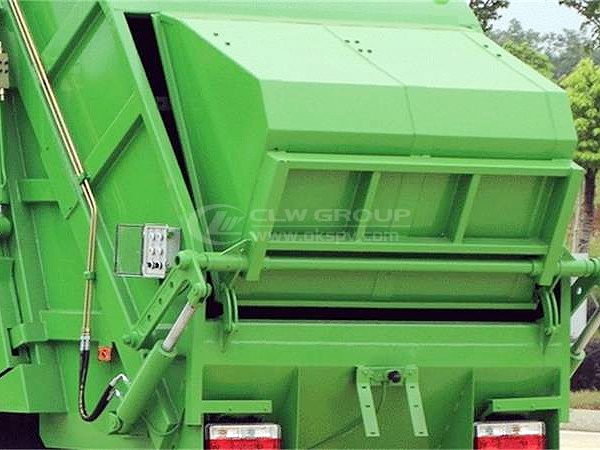

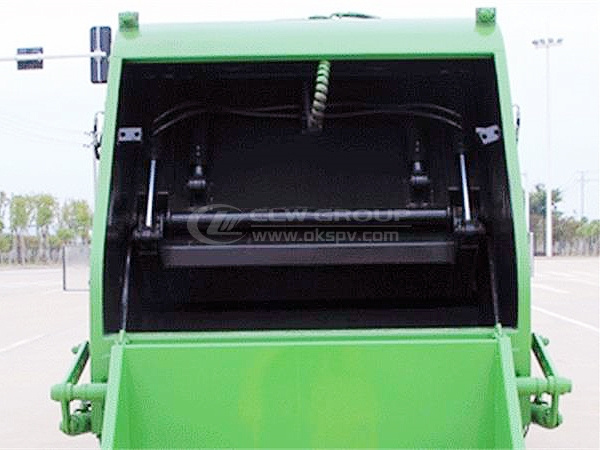

The filling mechanism of the rear loader garbage truck(garbage compactor truck) is composed of a skateboard, a scraper and other components, and the garbage in the hopper is pressed into the box body through the sliding of the skateboard and the rotation of the scraper.
【Loading Device】

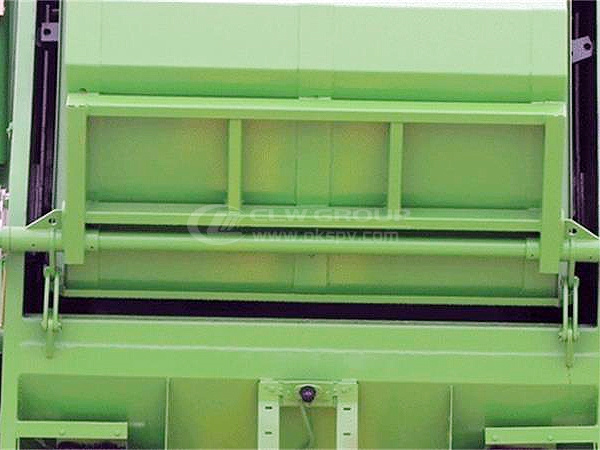

According to different garbage collection methods, users can choose to turn the drum type (it can hang the iron drum and plastic drum), the bucket type loading device and the swing arm type loading device.
【Lifting Device】

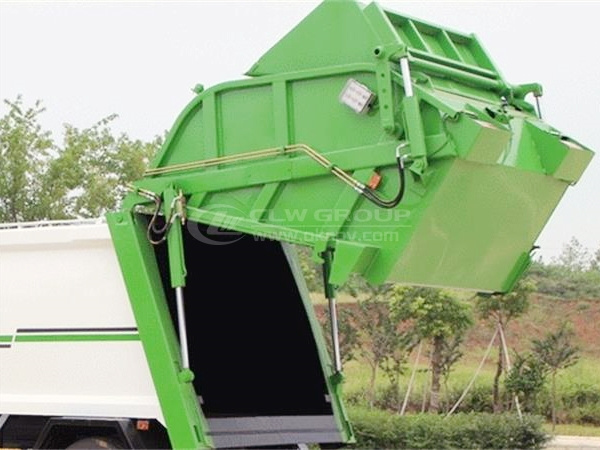

The lifting device of the garbage compactor truck uses a hydraulic lifting circuit, and the valve blocks the direct connection of the lifting cylinder and the hydraulic hose.
【Garbage Collection Box】
The bottom of the box is equipped with a garbage collection box, so that the garbage in the box does not leak out, effectively preventing secondary pollution.
【Electronically Control】

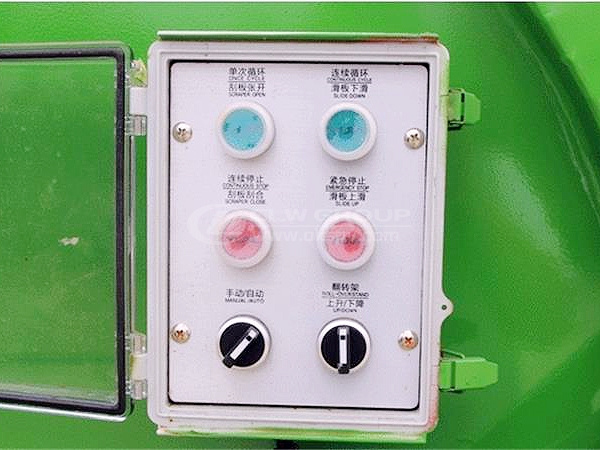

The rear part of the box is electrically controlled, and adopts PLC integrated control. By setting a logic circuit, it ensures that each operation instruction is executed in order, and realizes automatic circulation work of the skateboard and the vertical board.
【Manual Operation】

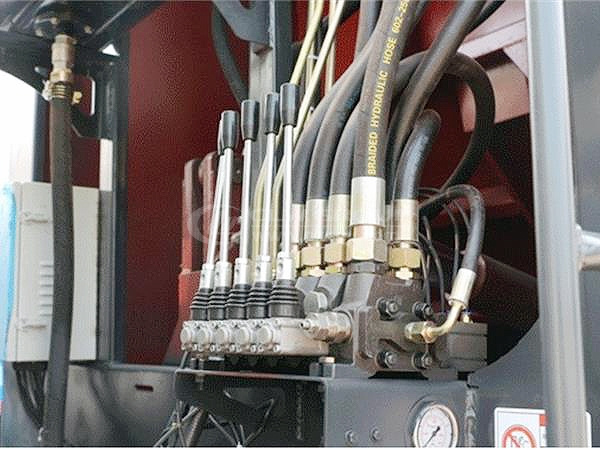

The hydraulic controller at the rear of the cab controls the work of the overturning mechanism and filling mechanism to ensure the accurate and reliable action of each mechanism and improve the performance of the vehicle.
Specification
Basic Configuration Parameters | |||
| Truck Type | Garbage compactor truck | Capacity（m³） | 20 |
| Overall Size(mm) | 10430×2550×3460 | Drive Type | 6x4 |
| Total Weight(kg) | 25000 | Rated Weight（kg） | 9870 |
| Curb Weight(kg) | 15000 | Max Speed(km/h) | 89 |
| Fuel Type | Diesel | Emission Standards | GB17691-2005,GB3847-2005 |
| Wheelbase(mm) | 4350+1350 | Tyre Specification | 295/80R22.5 |
| Chassis Brand/Model | DONGFENG/EQ1110SJ8BDC | Engine Brand/Model | YN/YN38CRE1 |
| Power(kW/HP) | 213/289 | Displacement（mL） | 6700 |
Upper Body Configuration Parameters | |||
| Standard | Compactor garbage truck is composed of sealed garbage compartment, hydraulic system, dual control system, diversified overturning mechanism and operating system. Lifting oil cylinders (2) trash bins can be lifted up and down, and the next cycle time is 50S. | ||
| Optional | Compactor garbage truck can be equipped with a rear hanging bucket turning mechanism or a garbage bucket turning mechanism, which is automated, and the garbage collection method is simple and efficient. Garbage trucks can be converted into garbage trucks for special purposes according to user requirements. | ||
