Compressed garbage truck is composed of sealed garbage compartment, hydraulic system and operating system. Vehicle for fully sealed type, compression, dumping, compression of all sewage in the process into the sewage compartment, more thoroughly solved the secondary pollution problems in the process of garbage transportation, avoid the inconvenience, key parts with imported parts, has great pressure, good sealing, convenient operation, safety and other advantages. Optional rear hanging bucket flip mechanism or garbage bucket flip mechanism.

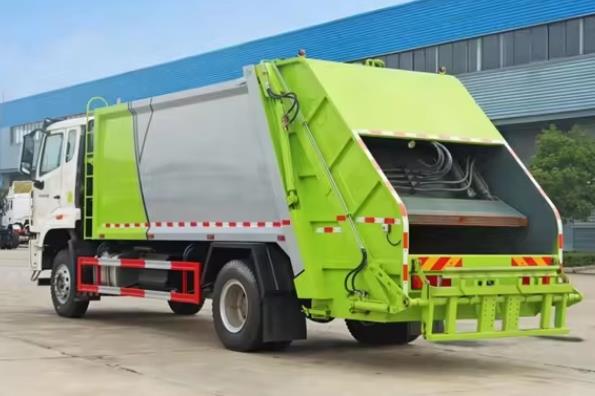

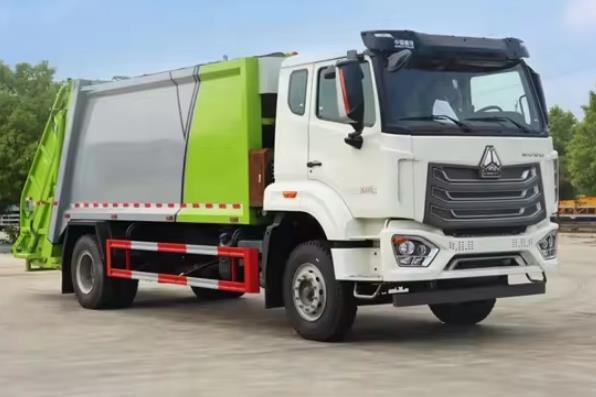

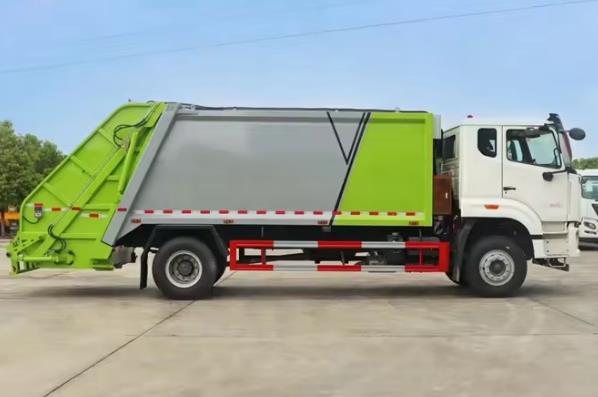

Photo Show
Main Technical Parameters | |
Overall | |
Vehicle name | 4*2 LHD RHD 15cbm DongFeng Diesel Fuel Garbage Compactor Truck |
Vehicle model | CLWDFGT15 GARBAGE COMPACTOR TRUCK |
Overall dimensions | 9000*2350*3200mm |
GVW | 18000kg |
Total net weight | 8500kgs |
Loading capacity | 9500kgs |
Max speed | 95Km/h |
Chassis | |
Chassis model | EQ1180GT |
Chassis brand | DONGFENG |
Cab type | Single |
Allowable passengers in cab | 2 |
Wheel base | 4700mm |
F/R axle | 6000kgs/12000kgs |
F/R track base | 2025/1798mm |
F/R suspension | 1455/1855mm |
Approach/departure angle | 21/14° |
Tire specification | 10.00R20; 6+1pcs |
Transmission | Manual |
Traction system | 4*2 |
Number of axles | 2 pcs |
Engine | |
Engine brand | CUMMINS |
Emission standard | Euro 6 |
Power | 190 hp |
Exhaust | 5900ml |
Garbage bin | |
Dustbin capacity | 15000 liters |
Dustbin material | High Quality Q345 manganese steel |
Welding type | Dustbin full welding (automatic welding) |
Thickness | Edge:5mm/Bottom: 5mm |
Other configuration | Double tank at tail and side; Suizhou star oil tank;High density hydraulic tubing;Zhongmei multiplex valve; Oil pump;Filler lift |
